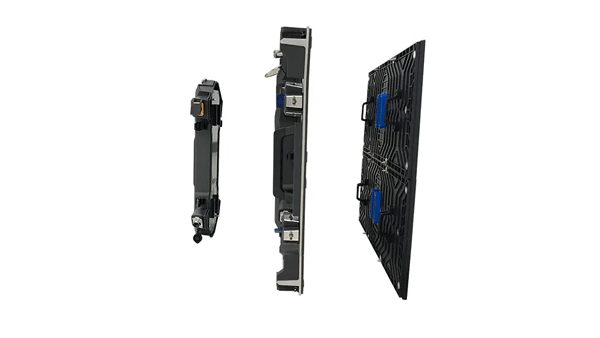

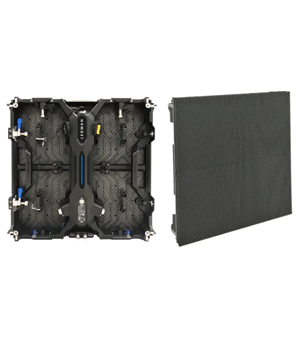

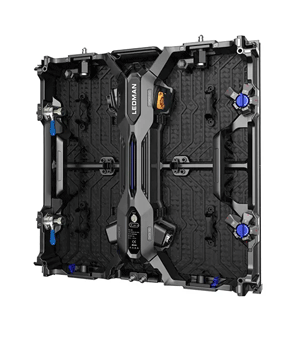

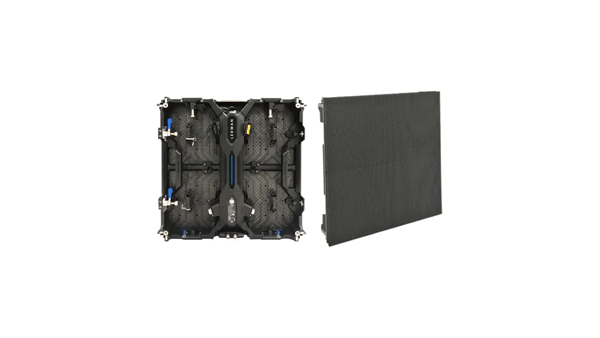

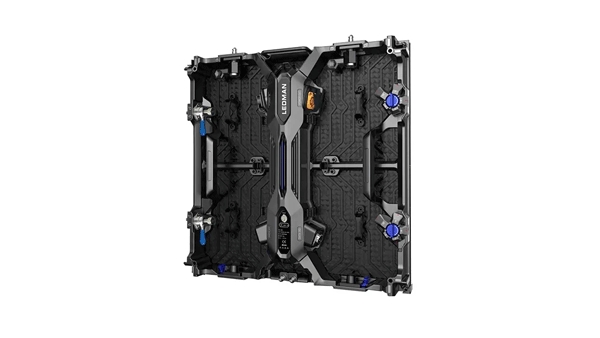

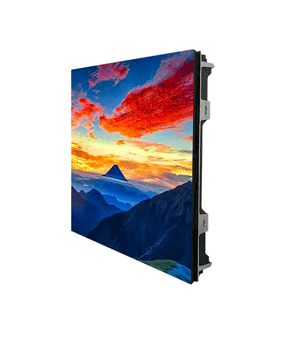

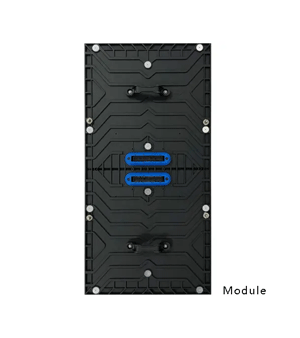

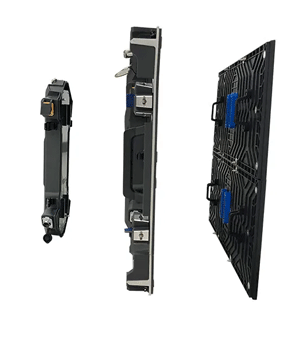

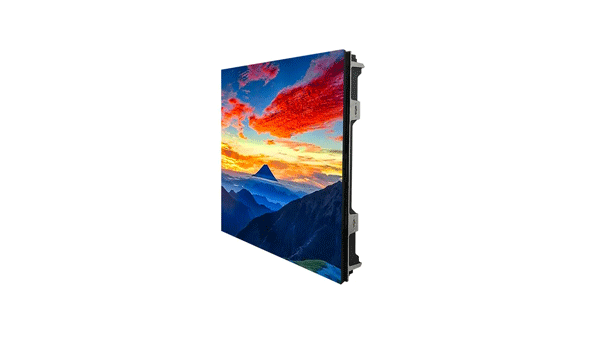

The W series is the latest rental chassis from Ledman. Easy to setup for exhibitions and events, the L Series panel has fine pixel pitches for great detail through to larger pitches suitable for bigger screens.
The W Series can be installed with an impressive curve radius ranging from a maximum of 12 degrees internally and 3 degrees externally. With front and rear service, the W Series panel is a great choice for any event.
- SMD Technology
- Pixel Pitch 1.9mm to 4.8mm
- Front & Rear Service
- Up to 12° internal and 3° external curve
SPECIFICATIONS
Model | W1.9 | W2.3 | W2.6 | W2.9 | W3.9 | W2 | W3 | W4 |
|---|---|---|---|---|---|---|---|---|
| Pixel Pitch (mm) | 1.9 | 2.3 | 2.6 | 2.9 | 3.9 | 2.9 | 3.9 | 4.8 |
| Pixel (dot) | 256*256 | 210*210 | 192*192 | 168*168 | 128*128 | 168*168 | 128*128 | 104*104 |
| Weight (kg) | 7.9 | 7.8 | 7.5 | 7.5 | 7.5 | 8.5 | 7.7 | 7.7 |
| Brightness(nit) | 800 | 1000 | 1000 | 1000 | 1000 | 4500 | 5000 | 5000 |
| Size (mm) | 500*500*80 | 500*500*80 | 500*500*80 | 500*500*80 | 500*500*80 | 500*500*80 | 500*500*80 | 500*500*80 |
| Material | Die cast Aluminum | Die cast Aluminum | Die cast Aluminum | Die cast Aluminum | Die cast Aluminum | Die cast Aluminum | Die cast Aluminum | Die cast Aluminum |
| Gray scale (bit) | 14-16 | 14-16 | 14-16 | 14-16 | 14-16 | 14-16 | 14-16 | 14-16 |
| Refresh rate(Hz) | 3840 | 3840 | 3840 | 3840 | 3840 | 3840 | 3840 | 3840 |
| Power Max./Avg. (W/㎡) | 400/133 | 512/170 | 488/163 | 488/163 | 488/163 | 615/205 | 650/216 | 650/216 |
| IP Rating (Front/Rear) | IP30/IP30 | IP30/IP30 | IP30/IP30 | IP30/IP30 | IP30/IP30 | IP65/IP54 | IP65/IP54 | IP65/IP54 |
| Inner arc | 0° 6° 12° | 0° 6° 12° | 0° 6° 12° | 0° 6° 12° | 0° 6° 12° | 0° 6° 12° | 0° 6° 12° | 0° 6° 12° |
| Outer arc | 0° 3° | 0° 3° | 0° 3° | 0° 3° | 0° 3° 6° | 0° 3° | 0° 3° | 0° 3° 6° |
| Installation/Maintenance | Front & Rear | Front & Rear | Front & Rear | Front & Rear | Front & Rear | Front & Rear | Front & Rear | Front & Rear |
| One person operation | √ | √ | √ | √ | √ | √ | √ | √ |
